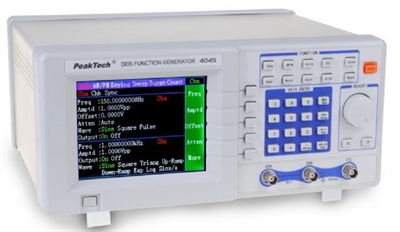

DDS function generator in the high performance indexes with numerous function charateristics which are necessary for the fast completion of measuring. The simple and clear front panel design and 5,7"-color liquid chrystal display shows the whole working states of the generator and set the corresponding parameters. Moreover, the optional extended functions enhance the system characteristics.
5,7" TFT LCD with clear menu interface and working parameters
High frequency accuracy: up to 10-5
High frequency resolution: 10 µHz
Memory for presetting up to 10 settings
Burst and modulation property: AM, FM, FSK, ASK, OSK, PSK
Frequency, period, amplitude virtual-, peak-peak- and power level value selectable
USB interface
Intregrated frequency counter up to 100 MHz and 7 W power amplifier
Safety: EN 61010-1; CAT II
Accessories: power cable, USB interface cable, software for Windows 2000/XP/VISTA and WIN 7, BNC cable, spare fuse and operation manual
Frequency range
100 mHz - 150 MHz
Output waveforms
sine, square, pulse, TTL, DC, triangle, sawtooth, stair, sweep, cardiac, sin(x)/s, burst, AM, FM, 2PSK, 4PSK, 2FSK, 4FSK, OSK, ASK
Vertical resolution
14 bits
Sample rate
400 MS/s
Harmonic distortion
-45 dBc
Total distortion
< 0,1 %
Square waveform
< 20 ns rise/fall time
Duty cycle
0,1 - 99,9 %
Frequency resolution
100 mHz
Amplitude range
0 - 20 Vpp
Amplitude offset
± 10 V
Amplitude resolution
1 0/00
10 µHz - 5 MHz
Waveform lenght
4096 points
Resolution
1 µHz
Power amplifier
7 W (integrated)
Operation voltage
100 ~ 120 V / 200 ~ 240 V AC; 50/60 Hz switchable ext.
Dimensions (WxHxD)
330 x 155 x 285 mm
Weight
4 kg
