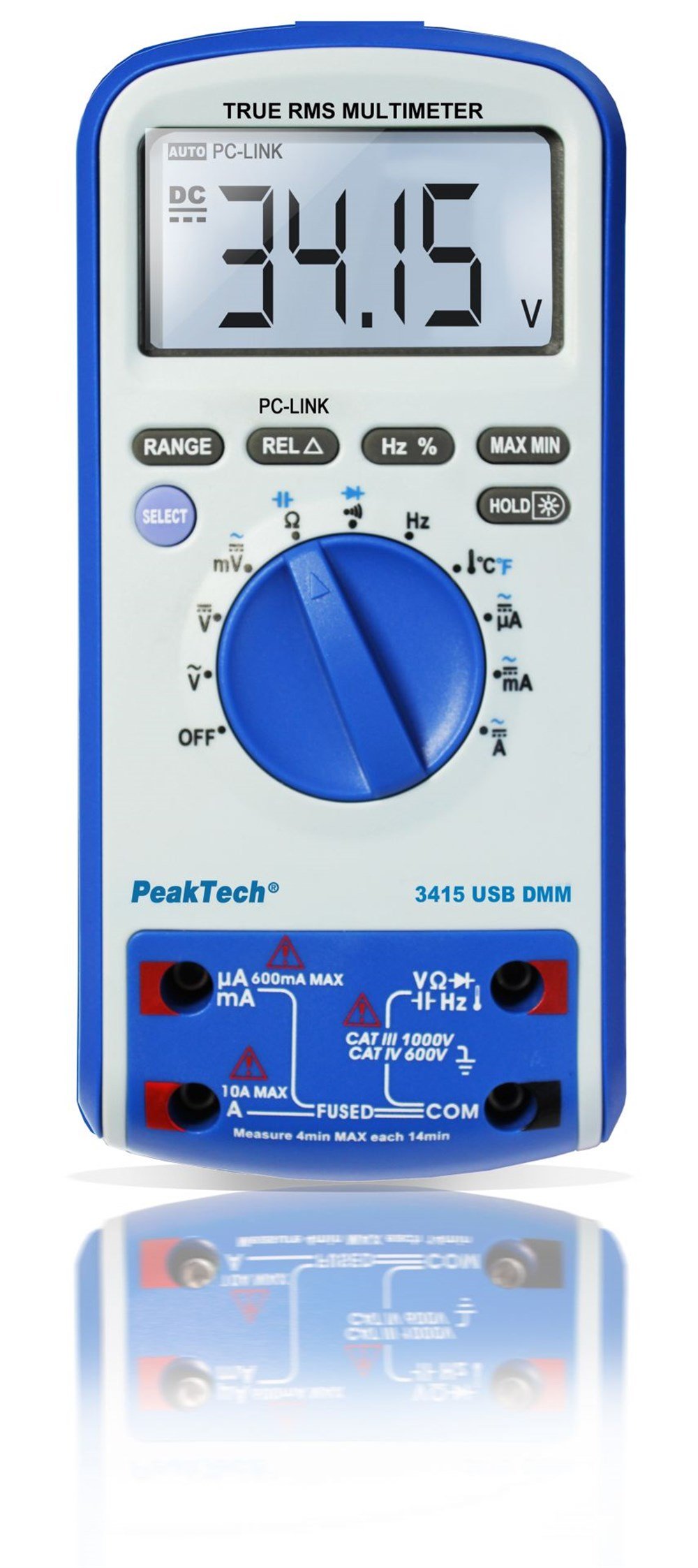

P3415 Dijital Multimetre 6.000 Sayım~1000V AC/DC~10A AC/DC/USB True RMS

Digital Multimeter ~ 6.000 Counts ~ 1000V AC/DC ~ 10A AC/DC with TrueRMS & USB

Multimeter designed with high safety standard featuring modern style, integrated protection frame. The 3 5/6 digit, 20 mm LCD-display (max. 6000) with function symbols and backlight guarantee exact data aquisation. Optical USB standard serial port is equipped with this meter for easy connection with PC to realize macro recording and monitoring, capture of transient dynamic datas. The basic functions can be selected by a rotary switch easily and automatic range selection for DCV, ACV, DCA, ACA, Ohm, diode-, continuity-, frequency-, capacitance- and temperature measuring function.

• Overload-protection on all ranges
• True RMS measurement (new model)
• Relative measurement, duty cycle
• MIN/MAX-mode, Data-hold
• Auto power off
• Auto- and manual range selection
• Low battery indication
• Safety: EN 61010-1; CAT III 1000 V/CAT IV 600 V
• Accessories: carrying case, USB-interface cable, software for windows 98/2000/XP/VISTA/7/8/10, typ-K-temperature probe, temperature adaptor, test leads, battery and operation manual
• Software Download: DMM Tool

DCV	600 mV/6/60/600/1000 V; 0,1 mV; +/- 0,8 % + 5 dgt.
ACV	600 mV/6/60/600/750 V; 0,1 mV; +/- 1,0 % + 5 dgt., frequency range: 40 ... 400 Hz
DCA	600/6000 µA/60/600 mA/6/10 A; 0,1 µA; +/- 1,5 % + 3 dgt.
ACA	600/6000 µA/60/600 mA/6/10 A; 0,1 µA; +/- 1,8 % + 5 dgt., frequency range: 40 ... 400 Hz
Ohm	600 Ohm/6/60/600 kOhm/6/60 MOhm; 0,1 Ohm; +/- 0,5 % + 2 dgt.
Capacitance	60/600 nF/6/60/600 µF/6/60 mF; 10 pF; +/- 5,0 % + 10 dgt.
Frequency	100/1000 Hz/10/100/1000 kHz; 10 mHz; +/- 0,1 % + 3 dgt.
Temperature	-55 ... +1000°C; 1°C; +/- 2,0 % + 3°C
Operation voltage	9 V-battery
Dimensions (WxHxD)	90 x 190 x 40 mm
Weight	500 g
EAN-13	4250569400919
