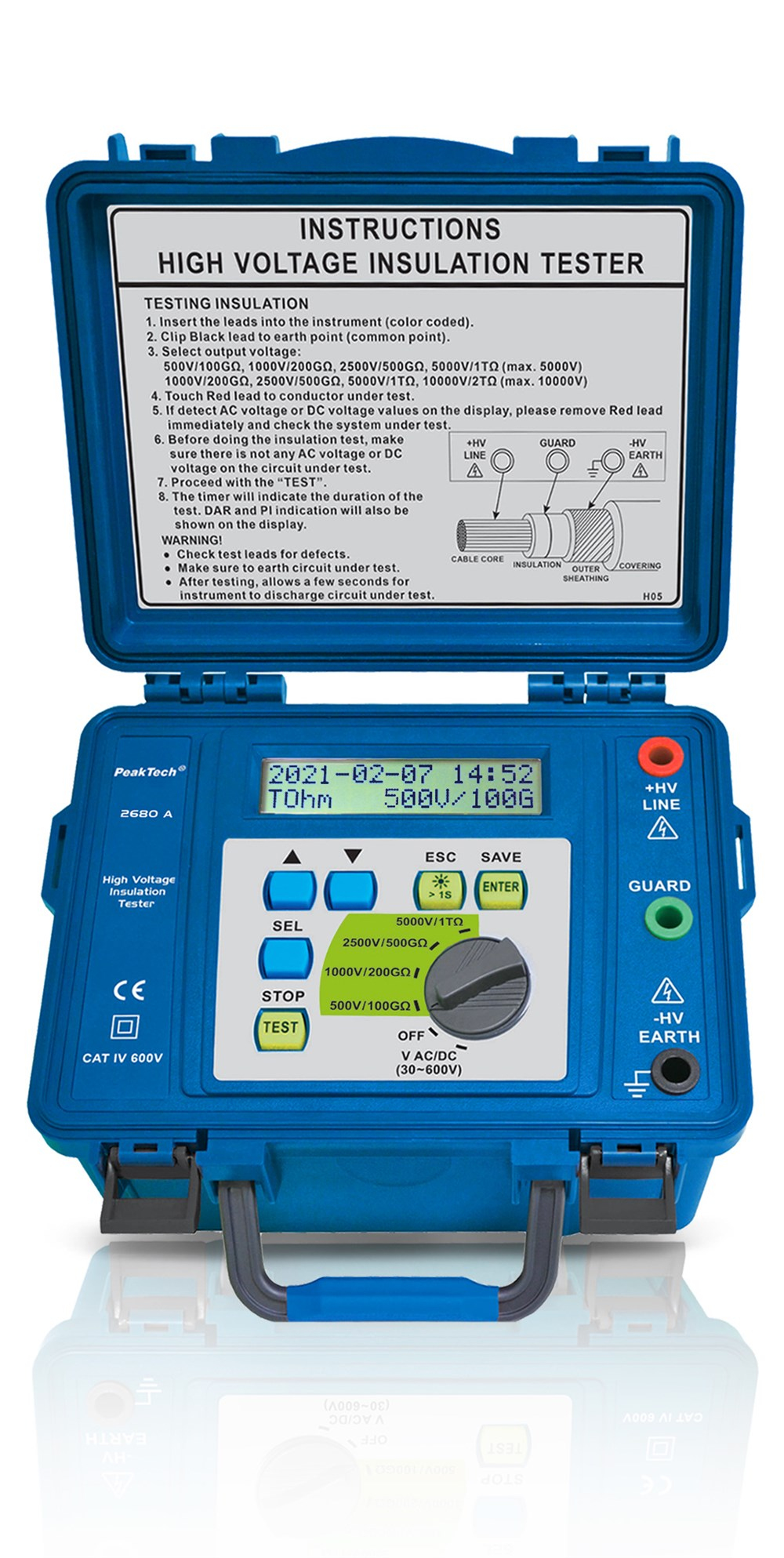

P2680 A Yüksek Gerilim İzolasyon Megeri 5.000 V/300 GΩ

HV-Insulationstester, 5.000 V/300 GΩ

Enables measurements according to VDE 0413. New high accurate, rugged tester with a two-line (16 digit) LCD-display, especially designed to read accurate measurements in harsh environments. Internal guard circuitry to eleminate the measurement errors introduce surface leakage current. The tester is controlled by the latest CMOS microprocessor with testvisual and audible early warning function. Long calibration interval, EEPROM-technology (Electrically Erasable Programmable Read Only Memory) Enersaveprogram to save batteries/Growbar/flash-test protection/Current limit/Power limit / autodischarge detector-indicator/Auto-off shut down the tester/auto-Stop timer shut down the test.

• Safety: EN 61010-1; CAT III
• Accessories: Heavy duty case, high grade colour modern flexible silicone test leads, ultrahigh voltage, integral guarded test probe and lead with coaxial silicone, batteries and operation manual

DC test voltage	500/1.000/2.500/5.000 V
GΩ-measuring ranges	30 GΩ (500 V), 60 GΩ (1.000 V), 150 GΩ (2.500 V), 300 GΩ (5.000 V)
Accuracy	± 5% + 2 dgt.
Max. output power limit	1 W
Widthstand voltage between electrical circuit a. housing	7.000 V AC for max. 1 Min.
AC-auto detect	prior to testing from > 450 V AC
Short circuit current	1 mA
Operation voltage	8 x 1,5V-Batteries (UM3, AA)
Dimensions (WxHxT)	250 x 190 x 110 mm
Weight	1,5 kg
EAN-13	4250569400513
