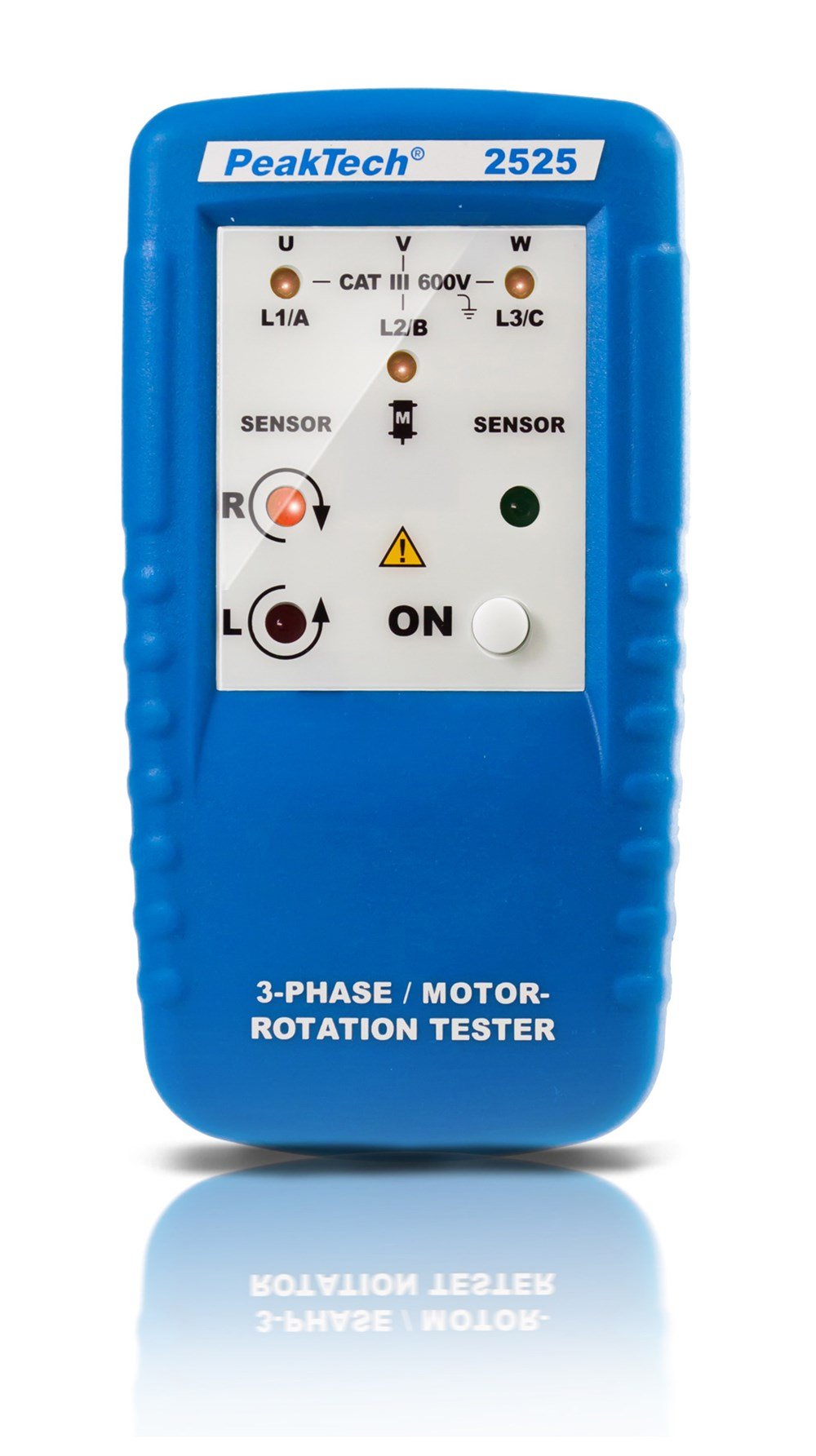

P2525 Motor Rotasyon Test Cihazı
P2525 Motor Rotasyon Test Cihazı
P2525 Motor Rotasyon Test Cihazı
P2525 Motor Rotasyon Test Cihazı
P2525 Motor Rotasyon Test Cihazı
P2525 Motor Rotasyon Test Cihazı
P2525 Motor Rotasyon Test Cihazı

P2525 Motor Rotasyon Test Cihazı

Marka : Peaktech
Fiyat : 54,45€  + KDV
KDV Dahil : 2.241,18TL
TL Fiyat : 1.899,30TL(341,87TL + KDV)
Toplam Stok Adedi : 0
:

Direction indicators are indispensable for use in the electrical assembly of three-phase motors. The PeakTech 2525 offers two different functions for displaying the direction of rotation. In normal use, the test leads are connected to the live terminals, with an R / L display showing the later direction of rotation of the electric motor. In addition, this model can be used for the contactless determination of the direction of rotation of switched-off or not connected motors. Place the switched-on measuring device on the motor parallel to the longitudinal axis without test leads. Now turn the shaft of the motor, the measuring device now shows a right or left movement.





Display Type: LED
Over voltage category: CAT III 300 V







  • Display of existing phases and rotating field L / R
  • Test leads with removable crocodile clips
  • Area of ​​application for 3-phase measurements from 120 .. 400 V AC
  • Determining the direction of rotation of motors even without a mains connection
  • Safety: EN 61010-1; VDE-0411; VDE-0413-7; CAT III 300 V; Protection class IP-40
  • Accessories: test leads, crocodile clips, bag, 9 V battery and manual​​​​
