P1207 Tablet Osiloskop 120 MHz / 2 CH, 1 GS/s
P1207 Tablet Osiloskop 120 MHz / 2 CH, 1 GS/s

P1207 Tablet Osiloskop 120 MHz / 2 CH, 1 GS/s

Marka : Peaktech
Fiyat : 787,07€  + KDV
KDV Dahil : 9.632,18TL
TL Fiyat : 9.632,18TL(KDV Dahil)
Toplam Stok Adedi : 0
1.194,28TL 'den başlayan taksitlerle
:

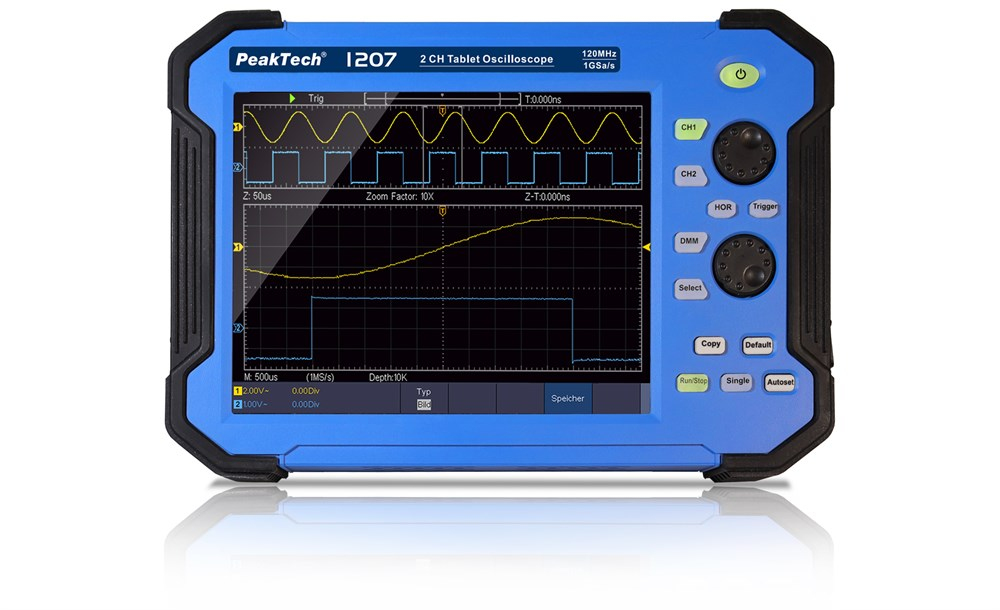

The PeakTech 1207 is a new, innovative oscilloscope, which was modeled on the size and design of a standard tablet. With the tablet oscilloscope it is possible to record any normal measured variable and measurement form as with a stationary oscilloscope. The PeakTech 1207 is a two-channel oscilloscope, it has a bandwidth of 120 MHz and it is able to carry out various measurements with a sampling rate of up to 1 GS / s. The built-in multimeter makes it possible to significantly expand the area of ​​application of the oscilloscope. Settings can be made quickly and precisely with the 8 inch touchscreen, but also with the function keys. The PeakTech 1207 is a tablet oscilloscope, which is used in almost all areas of electrical engineering due to its mobility and excellent application possibilities.



Sampling 1 CH: 1 GS/s
Sampling 2 CH: 500 MS/s
USB:
Bandwidth: 120 MHz
Battery: Li-Po 8000 mAh
Channels: 2 CH
Display Type: Touchscreen TFT
Hor. scale max.: 1000 s/div
Hor. scale min.: 2 ns/div
LAN:
Mains voltage: 110/240 V AC; 50/60 Hz
Memory depth: 40.000.000 Points
Resolution: 800 x 600 Pixel
Rise Time: < 2.9 ns
Screen size (TFT): 20 cm (8")
Vert. resolution: 8 Bit
Vert. scale max.: 10 V/div
Vert. scale min.: 1 mV/div
Integr. DMM:





  • 2 channel, 120 MHz oscilloscope with a maximum sampling rate of 1 GS / s
  • Built-in multimeter
  • 20 cm (8") TFT touchscreen
  • Autoset function for user-friendly operation
  • Recording length of max. 40 million points
  • Automatic measurement modes, XY mode and FFT function
  • Safety: EN 61010-1; CAT II 400V
  • Accessories: power cord with charging adapter, software CD for Windows, 2 probes, BNC cable, test leads, power adapter, stand and user manual





  •





  •
